BAA TRAINING
France
BAA Training France is a modern training facility near Paris Orly Airport. With six simulator bays and four FFSs, it is fully equipped to satisfy various pilot training needs.

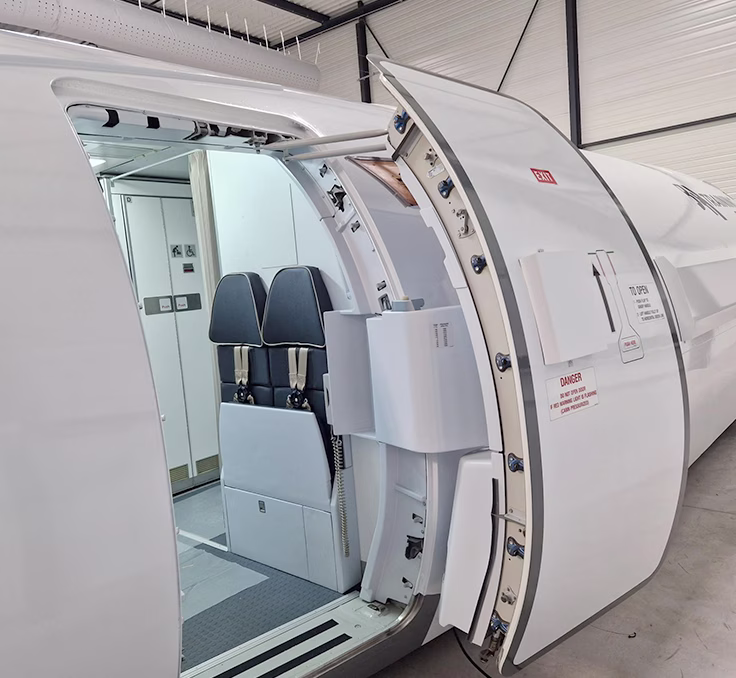

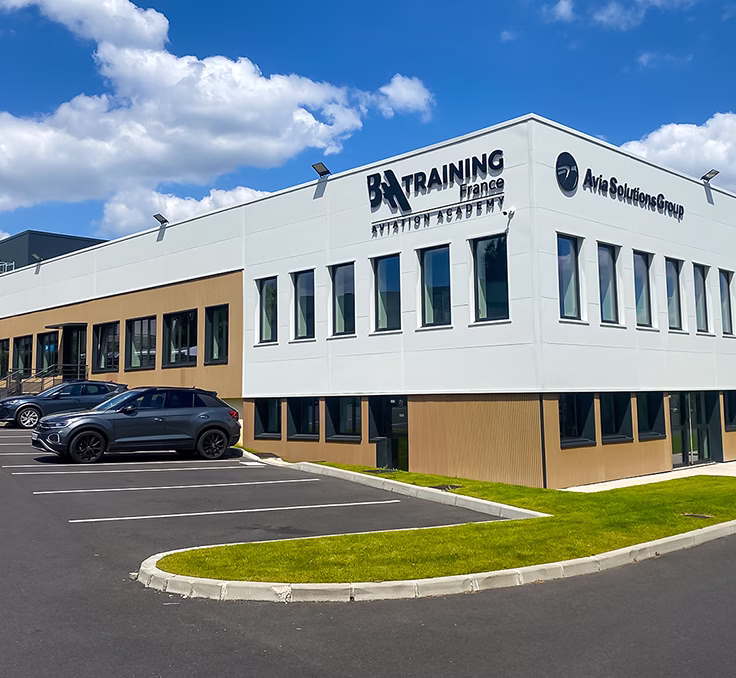

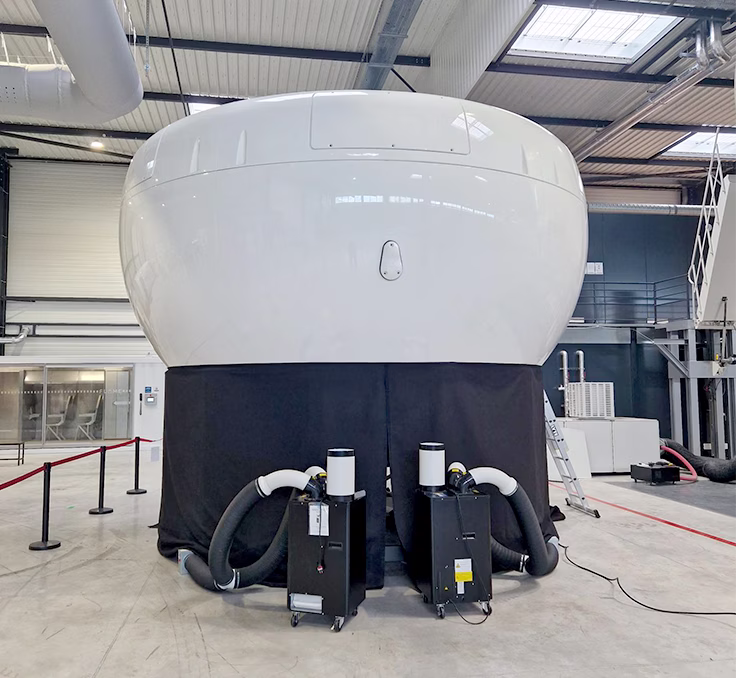

INFRASTRUCTURE
Modern 3,400 m² training center in Paris
15 min drive from Paris-Orly Airport
6 bays for state-of-the-art training equipment
Spacious classrooms, briefing/debriefing rooms
Training EQUIPMENT
FULL FLIGHT SIMULATORS
BOEING 747-400
Full Flight Simulator
FFS No
LT.FSTD.23
FSTD QUALIFICATION LEVEL
CG
VISUAL SYSTEM
RSI, Raster XT4
MOTION SYSTEM
Reddifusion 60in, hydraulic, 6DOF
ENGINE FIT
RR RB211-524G/ GE CF6-80C2B1F
INSTRUMENT FIT
None
WINDSHEAR FIT
YES
ADDITIONAL CAPABILITIES
RNP; UPRT according CS-FSTD(A) issue2
RESTRICTIONS/LIMITATIONS
None

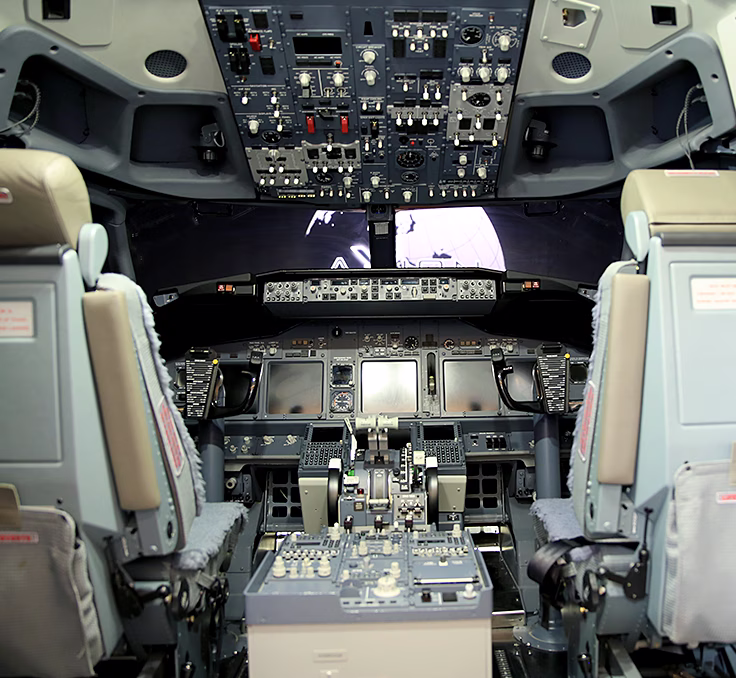

BOEING 737 NG
Full Flight Simulator
FFS No
LT.FSTD.22
FSTD QUALIFICATION LEVEL
D
VISUAL SYSTEM
Simthetiq aXion X2
MOTION SYSTEM
MOOG MB-EP-6DOF
ENGINE FIT
CFM56-7B, 26K
INSTRUMENT FIT
EIS,EFIS
WINDSHEAR FIT
Profiles available
ADDITIONAL CAPABILITIES
GLS;IAN; CATIII RVR75m; UPRT, CAT C airports
RESTRICTIONS/LIMITATIONS
NONE

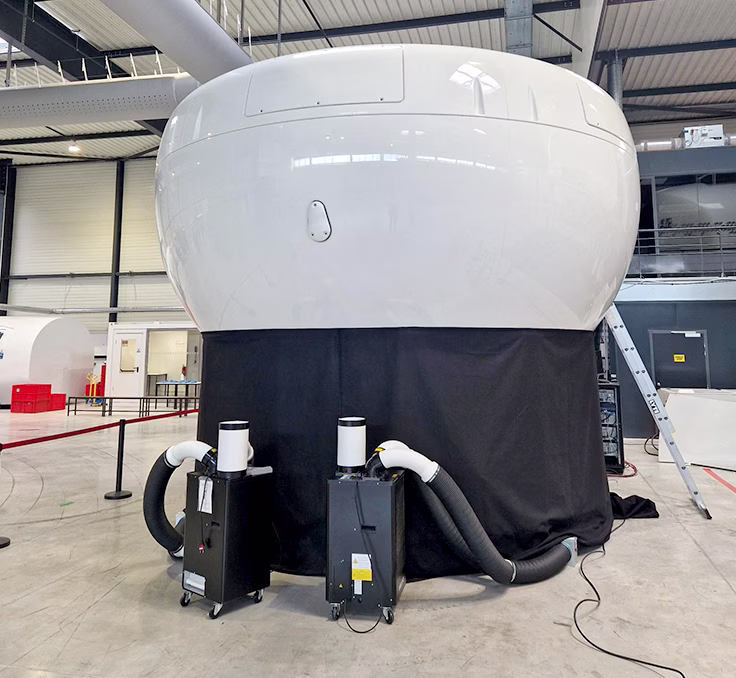

BOEING 737 NG
Full Flight Simulator
FFS No
LT.FSTD.24
FSTD QUALIFICATION LEVEL
FFS LEVEL D
VISUAL SYSTEM
CAE / Tropos 6022XR / 3 Channels / BARCO FL35 LED projectors, FOV: 200x43 deg. / Collimated
MOTION SYSTEM
MOOG Inc. / 6 DOF UTR 84.5 / 42'' / Electro-Mechanical
ENGINE FIT
CFM56-7B, 26K
INSTRUMENT FIT
EICAS/SD, PFD/ND
WINDSHEAR FIT
Yes
ADDITIONAL CAPABILITIES
UPRT, icing, full stall according to CS-FSTD(A) issue 2
RESTRICTIONS/LIMITATIONS
None
AIRBUS A320 NEO
Full Flight Simulator
FFS No
LT.FSTD.25
FSTD QUALIFICATION LEVEL
D
VISUAL SYSTEM
CAE Tropos 6031 XR LED, 200 deg HFOV and 43 VFOV, IG 12.1.23.0\
MOTION SYSTEM
6DOF CAE 62'' Electro-Mechanical Motion (EMM), model eM6-1430-14000 System manufactured by E2M Technologies
ENGINE FIT
CFM LEAP - 1A26 EEC STD FCS6
INSTRUMENT FIT
EIS / EFIS (PFD, ND)
WINDSHEAR FIT
YES
ADDITIONAL CAPABILITIES
NO
RESTRICTIONS/LIMITATIONS
None
AIRBUS A320 NEO
Full Flight Simulator
FFS No
LT.FSTD.30
FSTD QUALIFICATION LEVEL
D
VISUAL SYSTEM
CAE Tropos 6031 XR LED, 200 deg HFOV and 43 VFOV, IG 12.1.23.0
MOTION SYSTEM
6DOF CAE 62'' Electro-Mechanical Motion (EMM), model eM6-1430-14000 System manufactured by E2M Technologies
ENGINE FIT
CFM LEAP - 1A26 EEC STD FCS6
INSTRUMENT FIT
EIS / EFIS (PFD, ND)
WINDSHEAR FIT
YES
ADDITIONAL CAPABILITIES
N/A
RESTRICTIONS/LIMITATIONS
None
OTHER TRAINING DEVICES

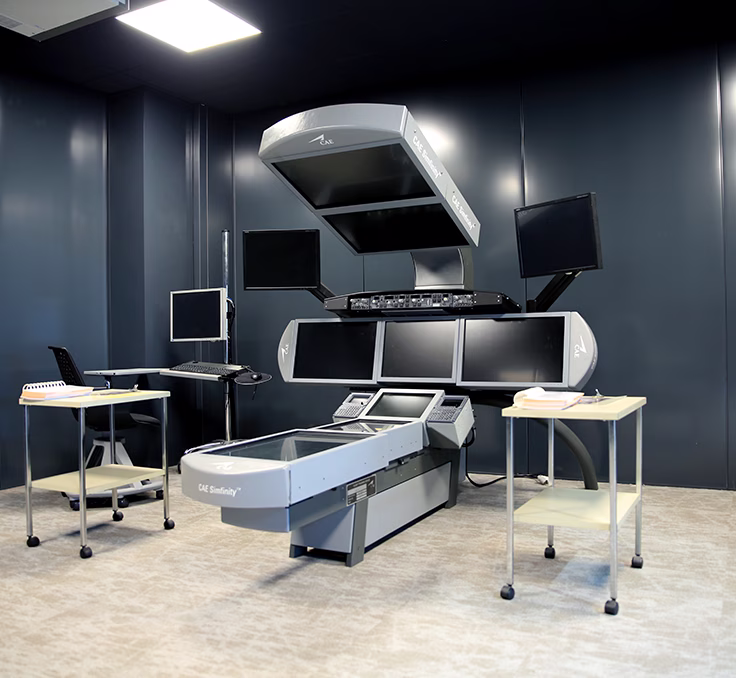

BOEING B737 NG
OTD
MANUFACTURER
CAE Inc.
DETAILS
OTD
ENGINE FIT
CFM56-7B26

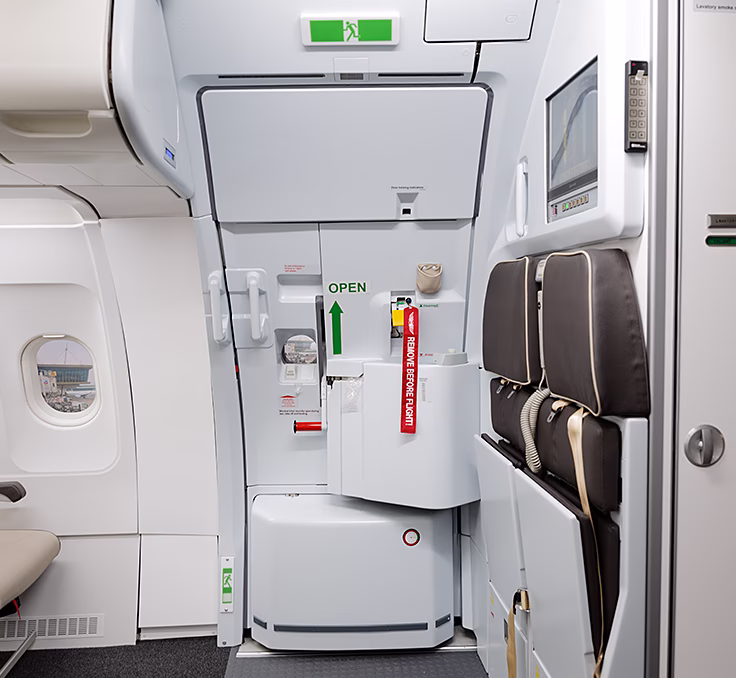

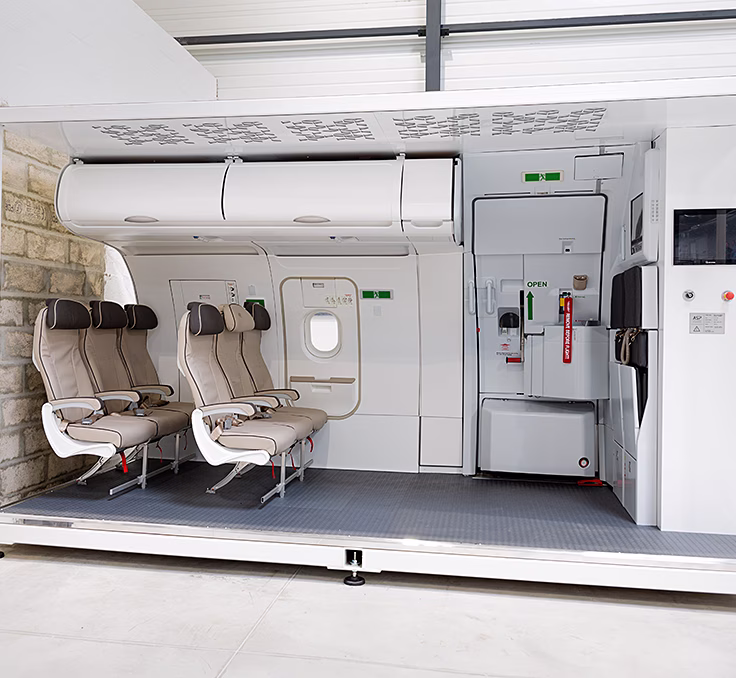

A320/A321 DOOR & OWE
Training device
MANUFACTURER
ASP Air-Space Oy
DETAILS
1L+ OWE ACF

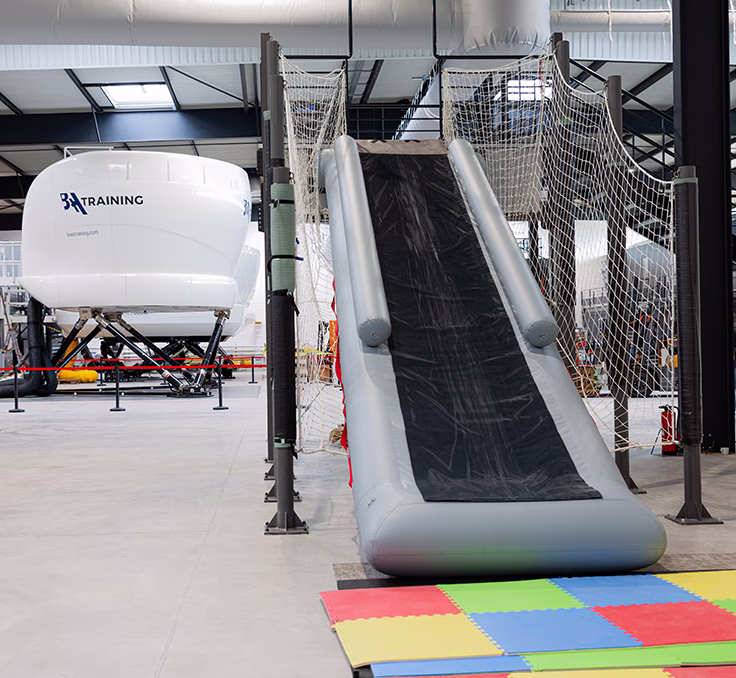

A320/A321 SLIDE
Training device
MANUFACTURER
ASP Air-Space Oy
DETAILS
Single line

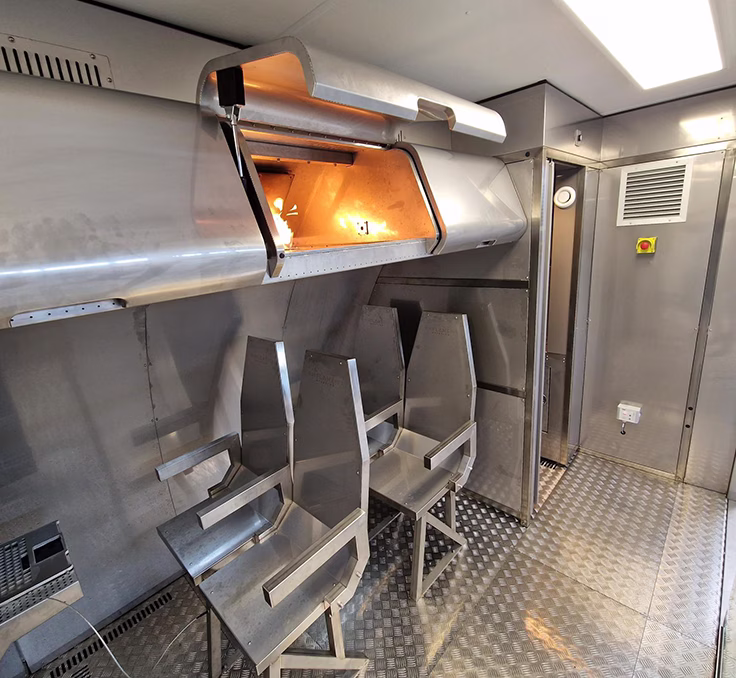

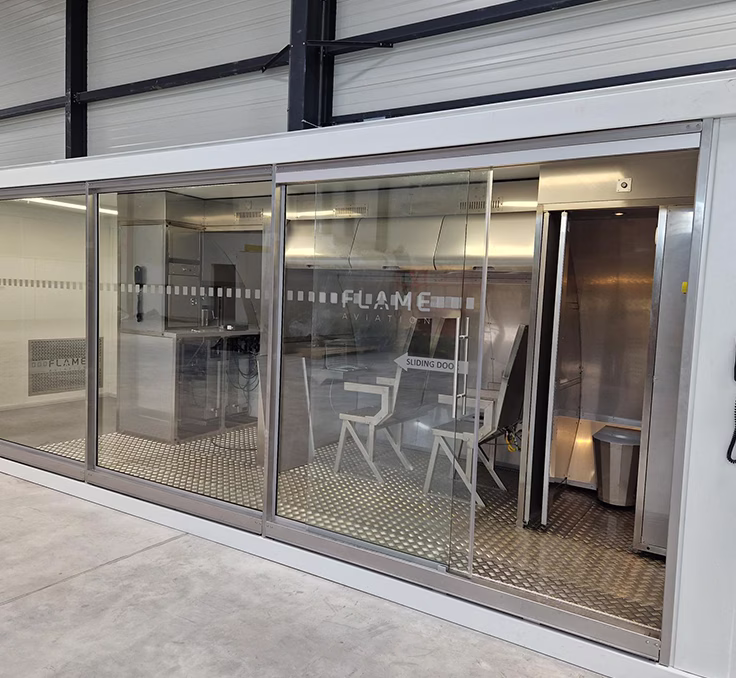

RFFT
Training device
MANUFACTURER
Flame Aviation B.V.
FIRE SIMULATIONS
5
REFILLING STATIONS
2
LAVATORY FIRE
YES
OVEN FIRE
YES
SEAT FIRE
YES
LUGGAGE BIN
YES
VR GLASSES
Training device
RESOLUTION
2448 x 2448 pixels per eye
REFRESH RATE
90 Hz
PROCESSOR
Qualcomm Snapdragon XR2
CONNECTIONS
2x USB 3.2 Gen-1 Type-C peripheral ports; Bluetooth 5.2 + BLE; Wi-Fi 6
BATTERY
26.6 Wh Battery – removeable & swappable
ADDITIONAL INFO
Perfect weight balance provides comfortable long-session use
Eye comfort adjustment supporting IPD range of 57mm to 72mm

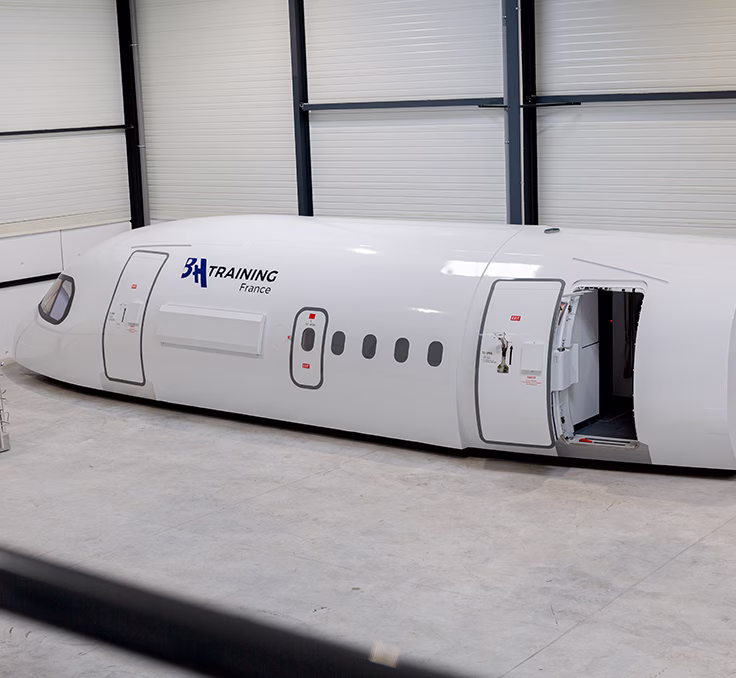

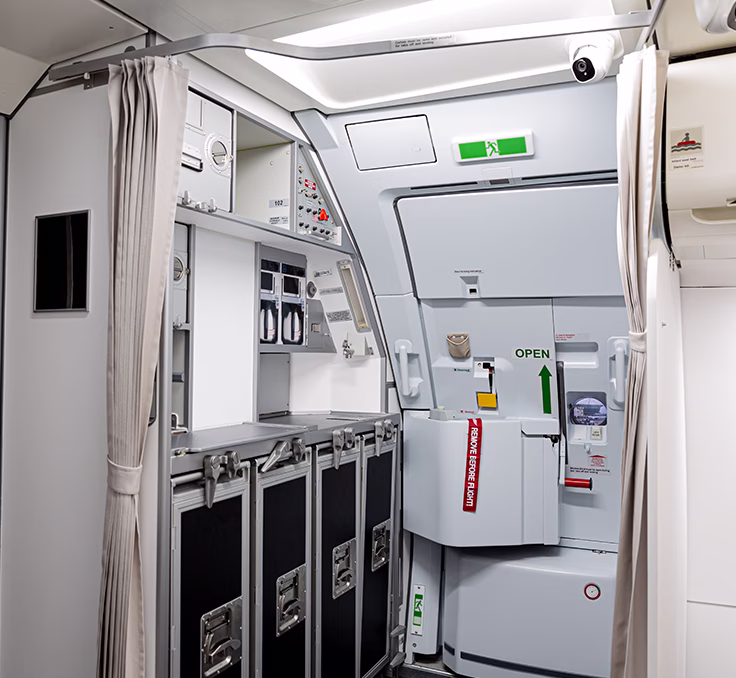

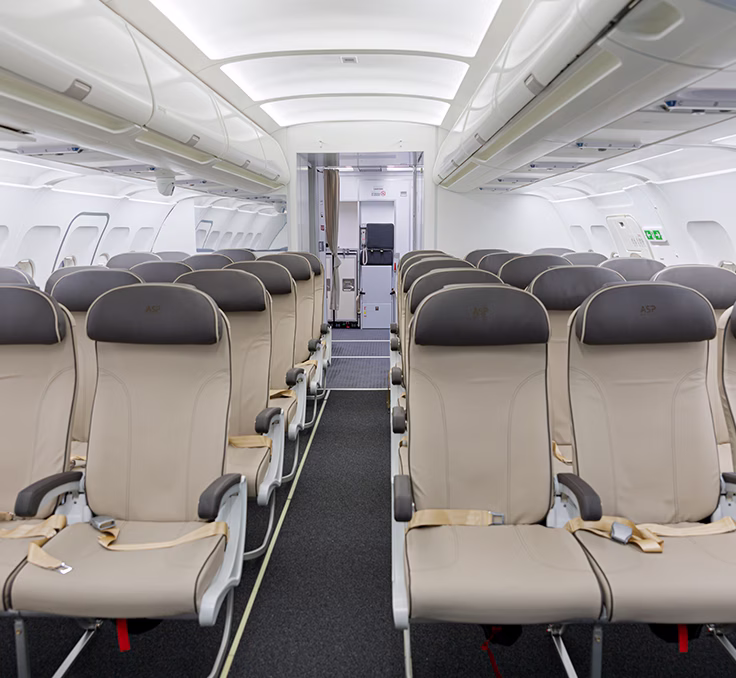

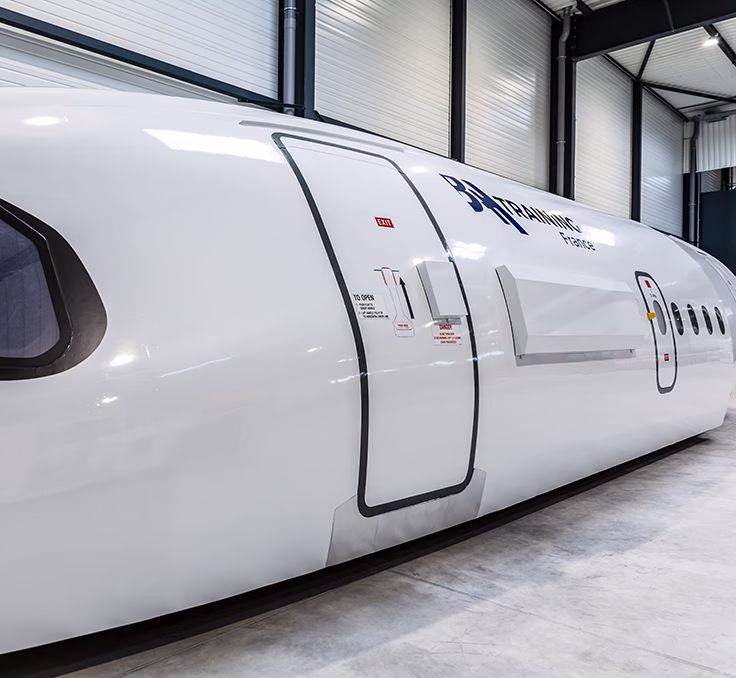

AIRBUS A320 CEET
Training device
MANUFACTURER
ASP Air-Space OY
DETAILS
1L+ OWE ACF

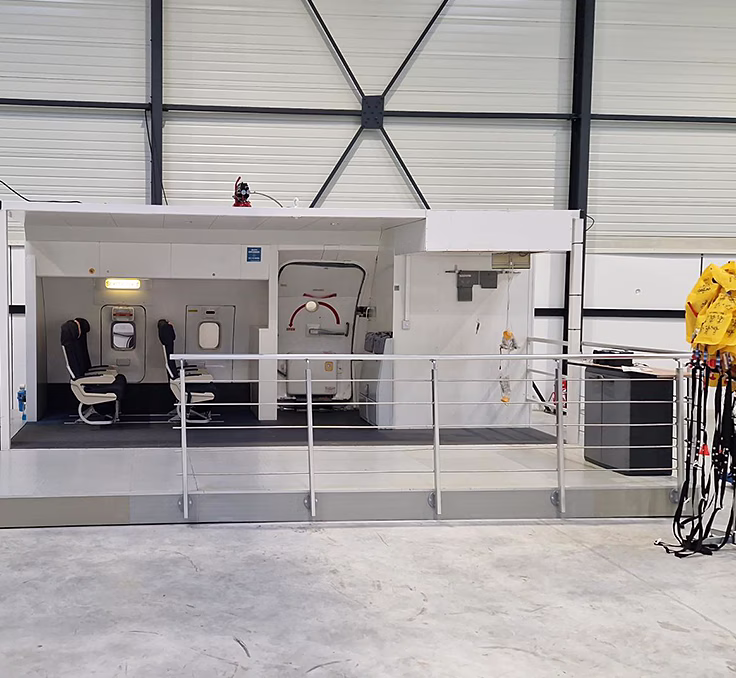

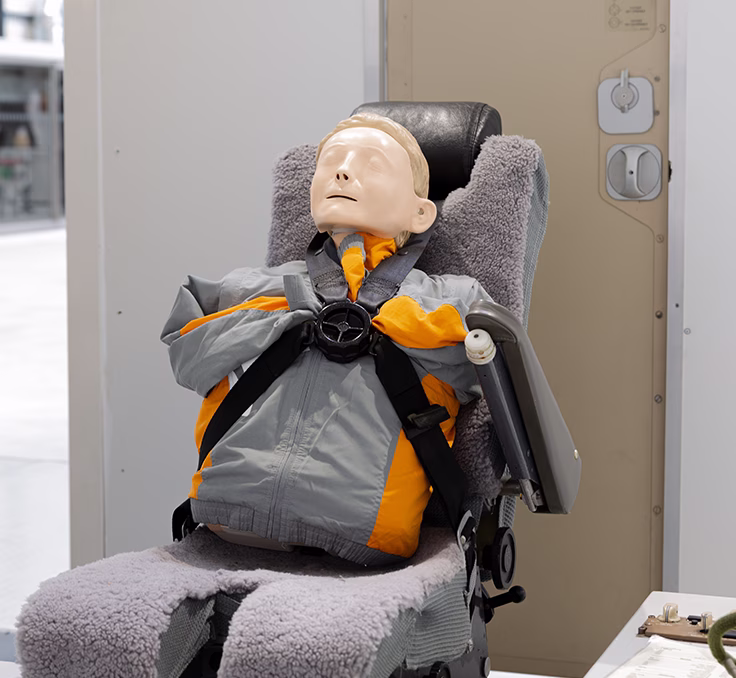

BOEING 737
DOOR & OWE
Training device
ENTRY DOOR
YES
OWE
YES
COCKPIT DOOR
YES
COCKPIT SEAT AND FLIGHT CREW MASK
YES
PSU OXYGEN COMPARTMENT
YES

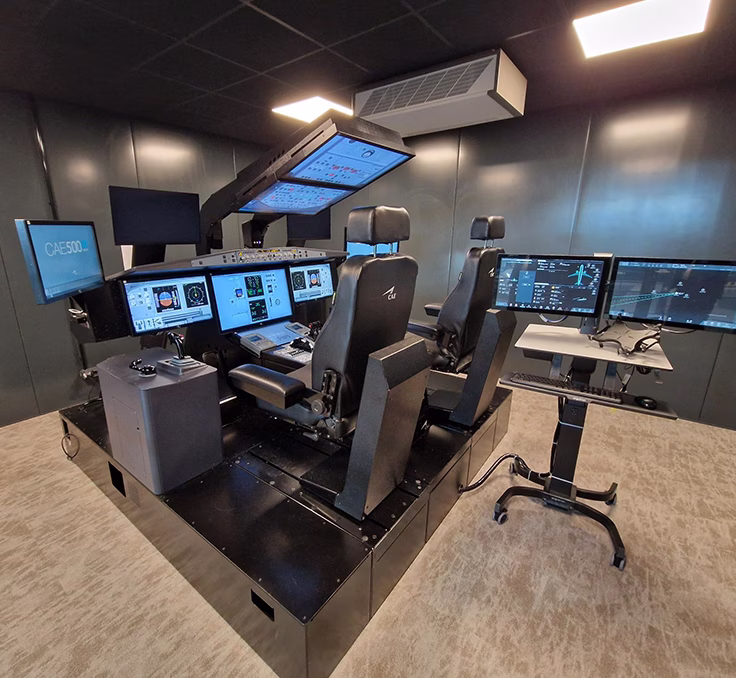

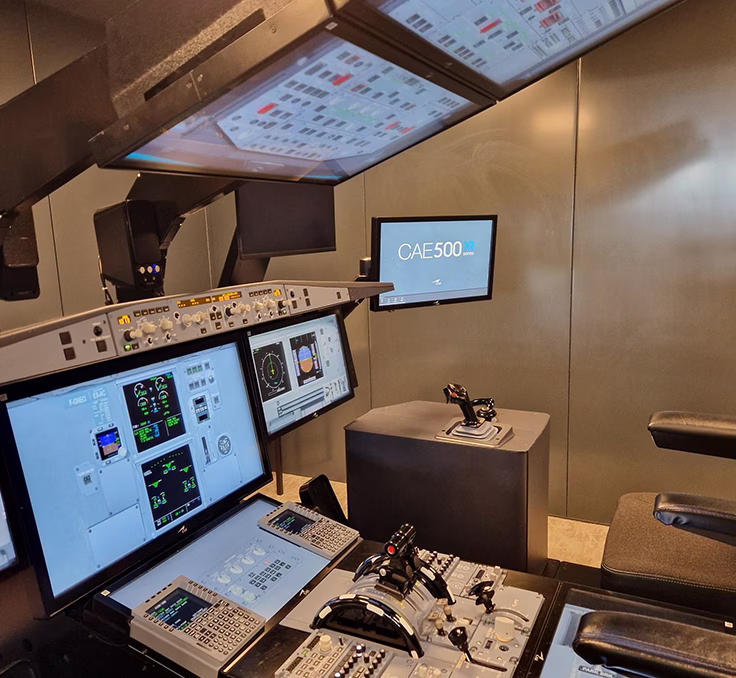

AIRBUS A320 NEO
FTD
FSTD No
LT.FSTD.26
FSTD QUALIFICATION LEVEL
FTD LEVEL 1
VISUAL SYSTEM
CAE Tropos 6031 XR, single channel
MOTION SYSTEM
N/A
ENGINE FIT
CFM LEAP-1A26 (Simulated)
INSTRUMENT FIT
EIS / EFIS (PFD, ND)
ACAS FIT
TCAS II (ver. 7.1)
WINDSHEAR
YES
ADDITIONAL CAPABILITIES
NO
RESTRICTIONS/LIMITATIONS
None
SNEAK PEEK AT
BAA Training France!
